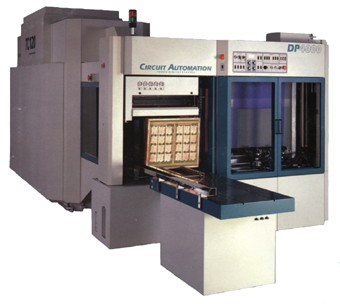

DP- 4000
Automatic Coating and Drying System
Panel Dimensions
Minimum panel size
12¡¨¡Ñ12¡¨ (203¡Ñ305mm)
Maximum panel size
24¡¨¡Ñ29.5¡¨ (610¡Ñ750mm)
Minimum thickness
0.040¡¨ (1.0mm)
Maximum thickness¡¯
0.165¡¨ (4.2mm)
Productivity
Panel size
18¡¨
24¡¨
29.5¡¨
Flood/Print
25 sec
31 sec
33 sec
Flood/Print/print
30 sec
36 sec
39 sec
Cycle time is between identical in the machine cycle for consecutive panels. "Panel Size" is the dimension in the direction of screening.¡§Flood/Print¡¨ and "Flood/Print/Print" are the coating modes most commonly used.
Coating Thickness and Fill
Thickness of ink deposited will vary with the type of ink, the circuit height, and the mesh used. Typical thickness over a 3.0 mil (75£g) trace is 0.6mil (15£g) using 110 tpi mesh and 1.0 mil (25£g)
Using 86 tpi mesh. 3.0 mil lines and spaces may be coated without skips or air encapsulation.
Utility Requirements
DP-4000
SYS-120
Electrical
115V, 1O, 10A
480V, 3O,50A, 60Hz
or 230V, 1O, 5A
or 380V, 3O,70A, 50Hz
Pneumatic
10psi @ 100 psig
N/A
(17 m3/hr @ 7 bar)
Exhaust
250 cfm
760cfm
(425 m
3
/hr)
(1300 m
3
/hr)
IP-04 and Conveyor Modules do not require external utilities.
